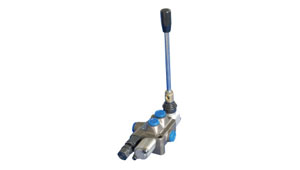

BDL-L40 Series

Monoblock Directional Valve
BDL-L40 Series
• Single spool monoblock valve
• Spool function: O, P. Y, M
• Parallel circuit
• Joining port: L (screw connection)
• Spool returning type with T (spring return) and W (ball locking)
• Flow 40 l/min with nominal pressure 160bar, max 315bar
• Nominal diameter: G3/8; M18*1.5
• Model examples: BDL-L40E-OT; BDL-L40F-MT; BDL-L40F-MW etc
