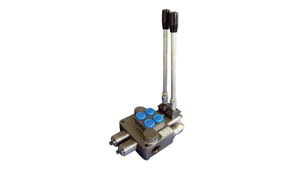

ZD-L10 Series

Monoblock Directional Control Valve

ZD-L10 series

•  Model examples : ZD-L10E-2OT; ZD-L10F-OT.AT; ZD-L10F-20W etc.
•  Nominal diameter : G3/8; M18*1.5; M16*1.5; SAE6
•  Spool function: O, P. Y, A
•  Parallel circuit
•  Joining port: L (screw connection)
•  Spool returning type with T (spring return) and W (ball locking)
•  Flow 40 l/min with pressure 160bar, 200bar, max 250bar
•  Monoblock types with 2 working sections
